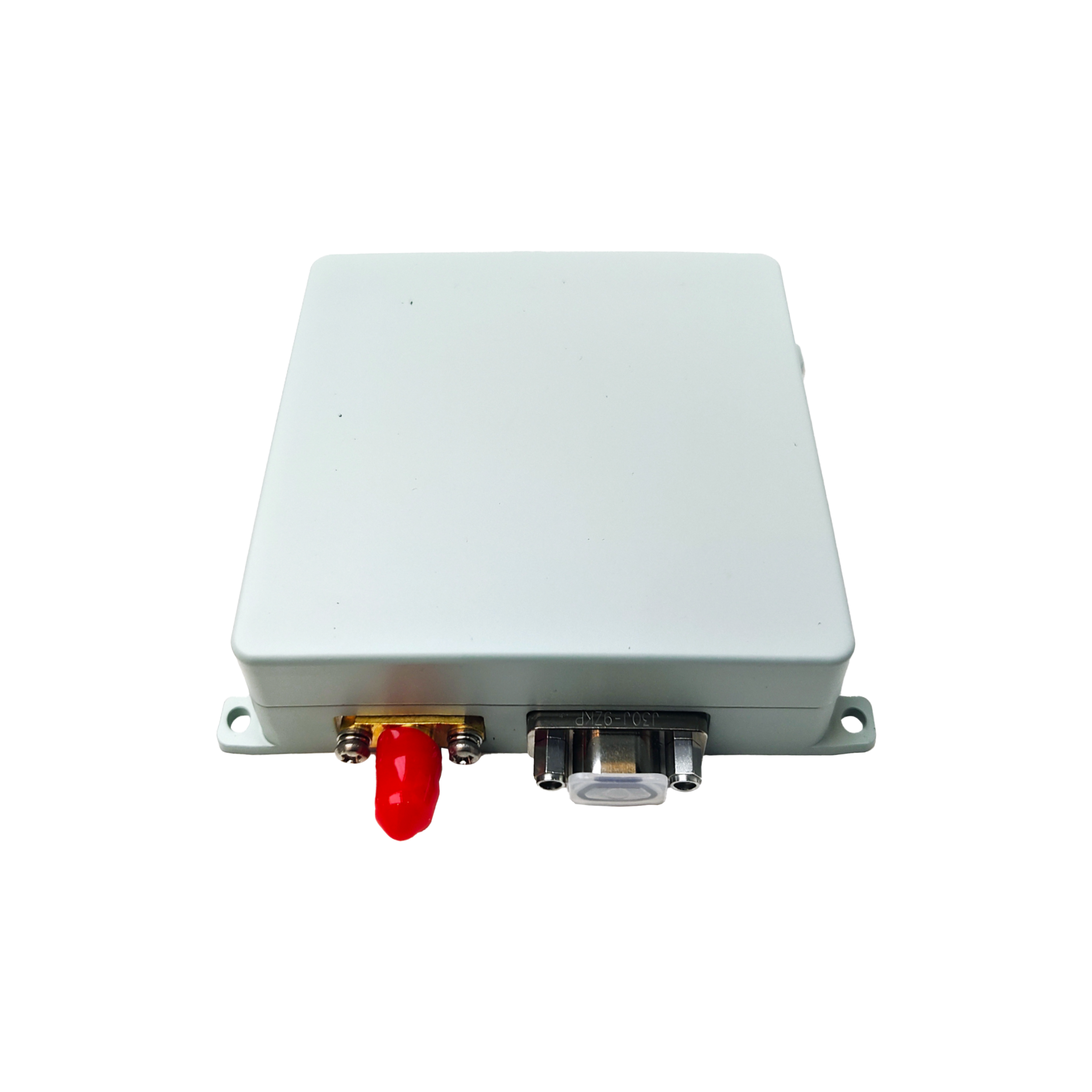

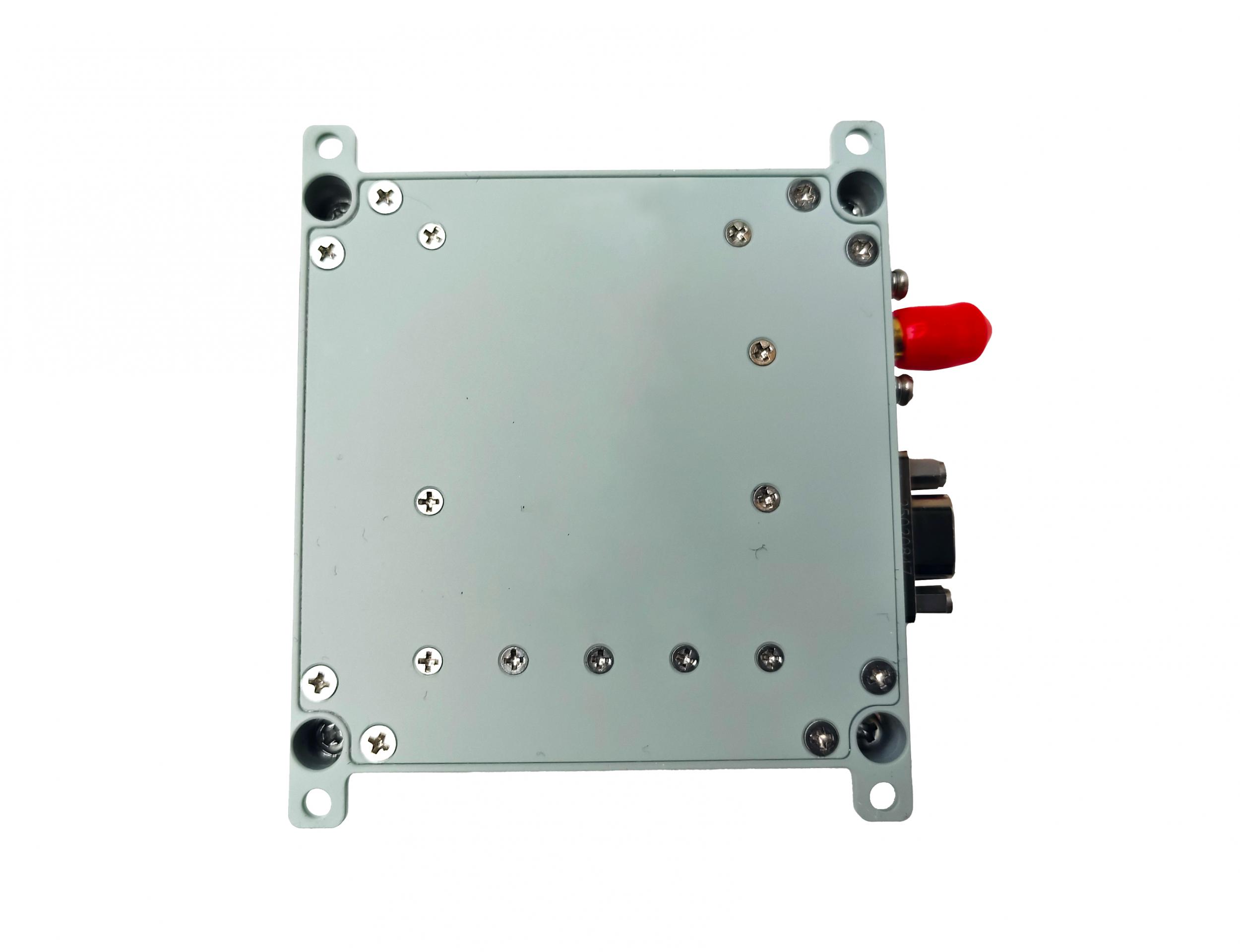

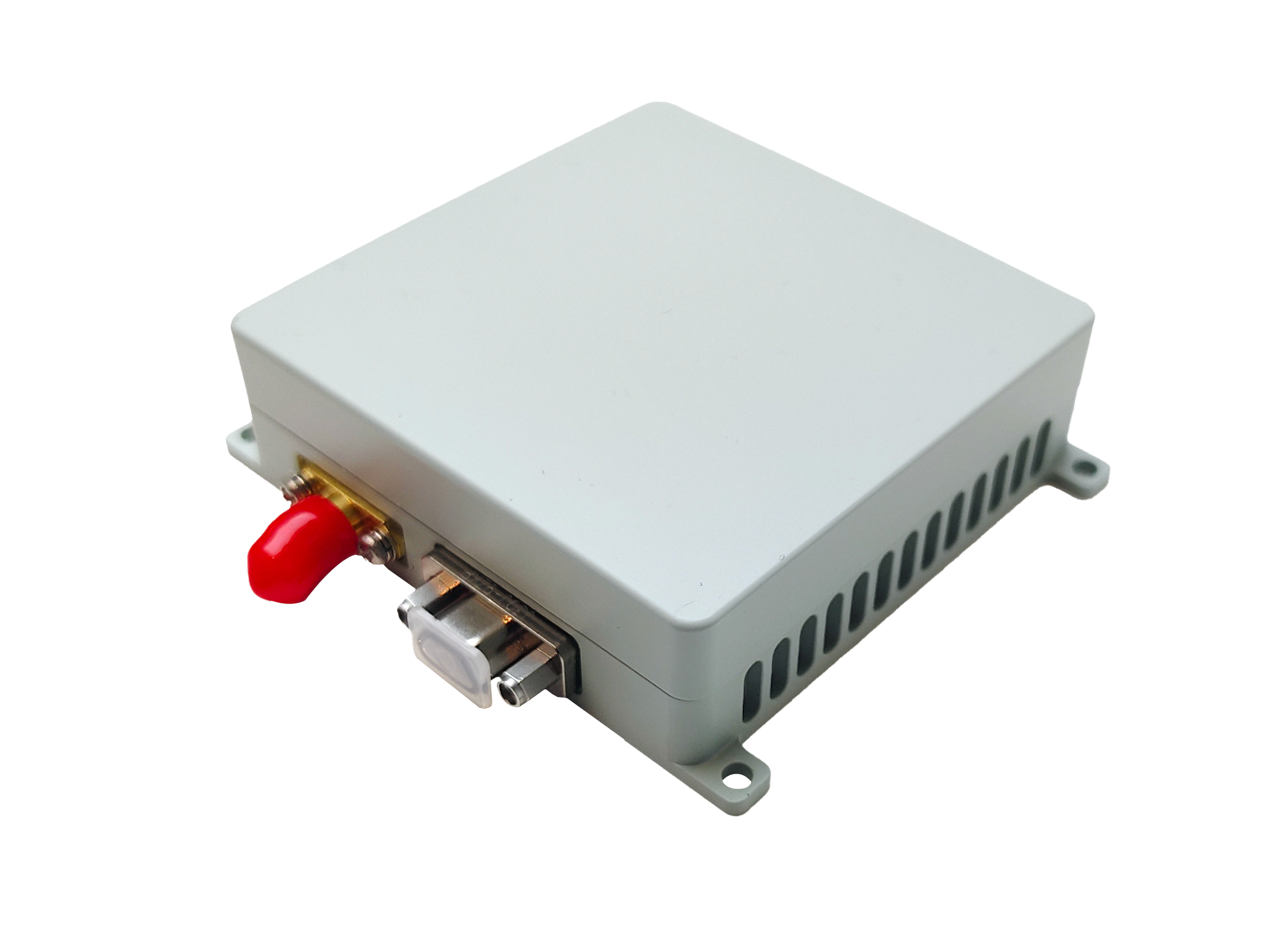

AJS-S43-4CH
AJS-S43-4CH is a miniaturized all-in-one CRPA anti-jamming GNSS terminal with a 65mm high-integration array antenna. Designed for UAVs and industrial PNT devices, it supports B1/L1/E1 wideband anti-in
AJS-S43-4CH is a miniaturized all-in-one CRPA anti-jamming GNSS terminal with a 65mm high-integration array antenna. Designed for UAVs and industrial PNT devices, it supports B1/L1/E1 wideband anti-interference and stable positioning. Integrated with antenna, anti-jamming modules and navigation receiver, it is compact, lightweight and cost-effective for harsh navigation scenarios.
| Anti-interference capability： | |
| Single | ≥95dBc |
| Two | ≥85dBc |
| Three | ≥80dBc |
| Interference Type： | |
| Band-limited Gaussian white noise interference,Spread spectrum matched filter interference | |
| Pulse interference，sweep interference | |
| Mixed interference | |
| Anti-interference airspace\orientation | 0~360°、pitch-90~90° |
| Volume | 65x65x21mm |
| Power consumption | ≤6W(room temperature) |
| Weight | ≤130g |
| RF output description： | |
| Output signal frequency | 1575.42MHz/1561.098MHz |
| In-band power of output signal | -75~-85dBm |
| Output impedance | 50 ohms |
