Miniaturized all-in-one GNSS anti-jamming terminal supporting BDS, GLO, GPS and GAL four-system navigation. Featuring 3-source wideband anti-jamming and anti-attack capability, this compact PNT device delivers stable, secure and reliable positioning for civilian drones and industrial unmanned vehicles.

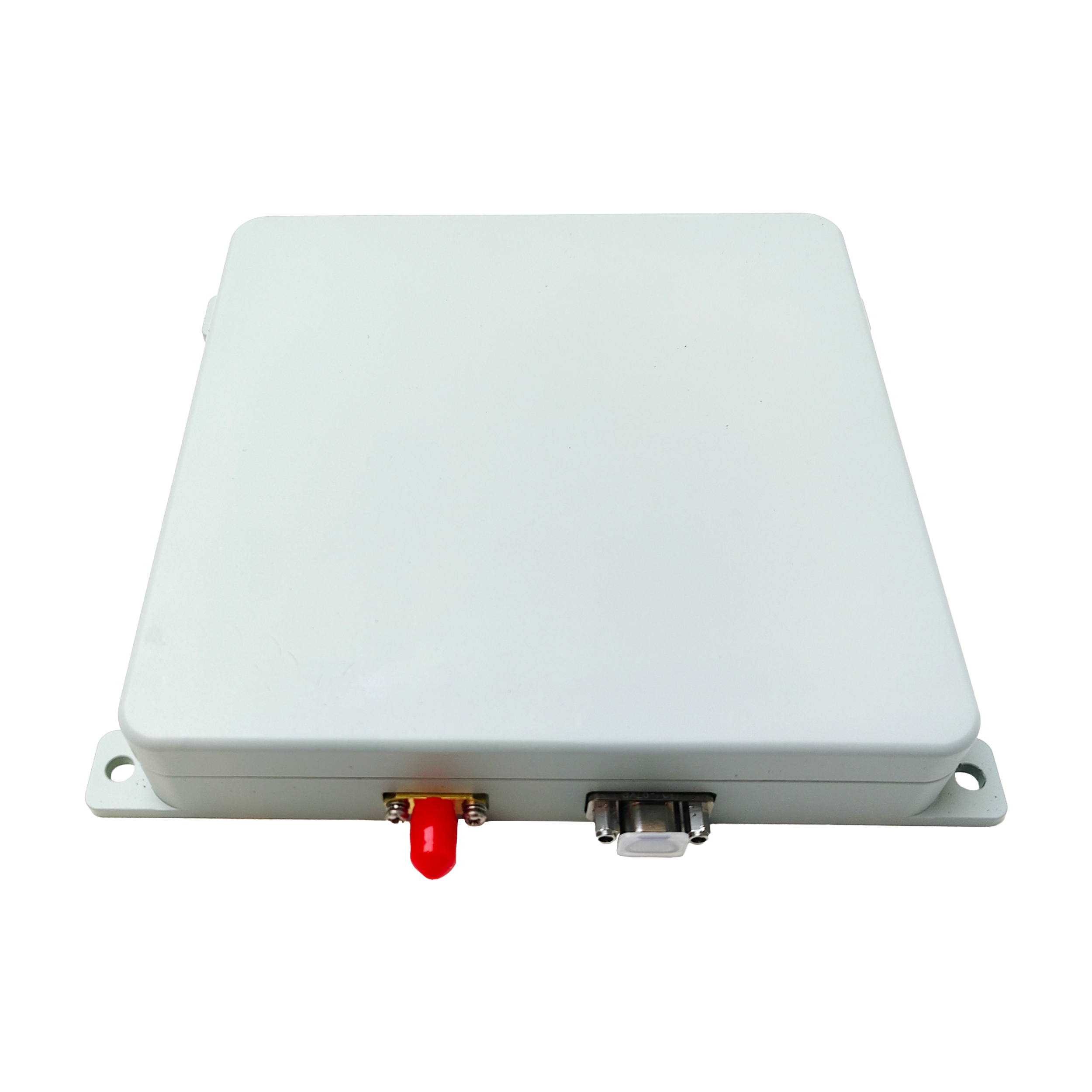

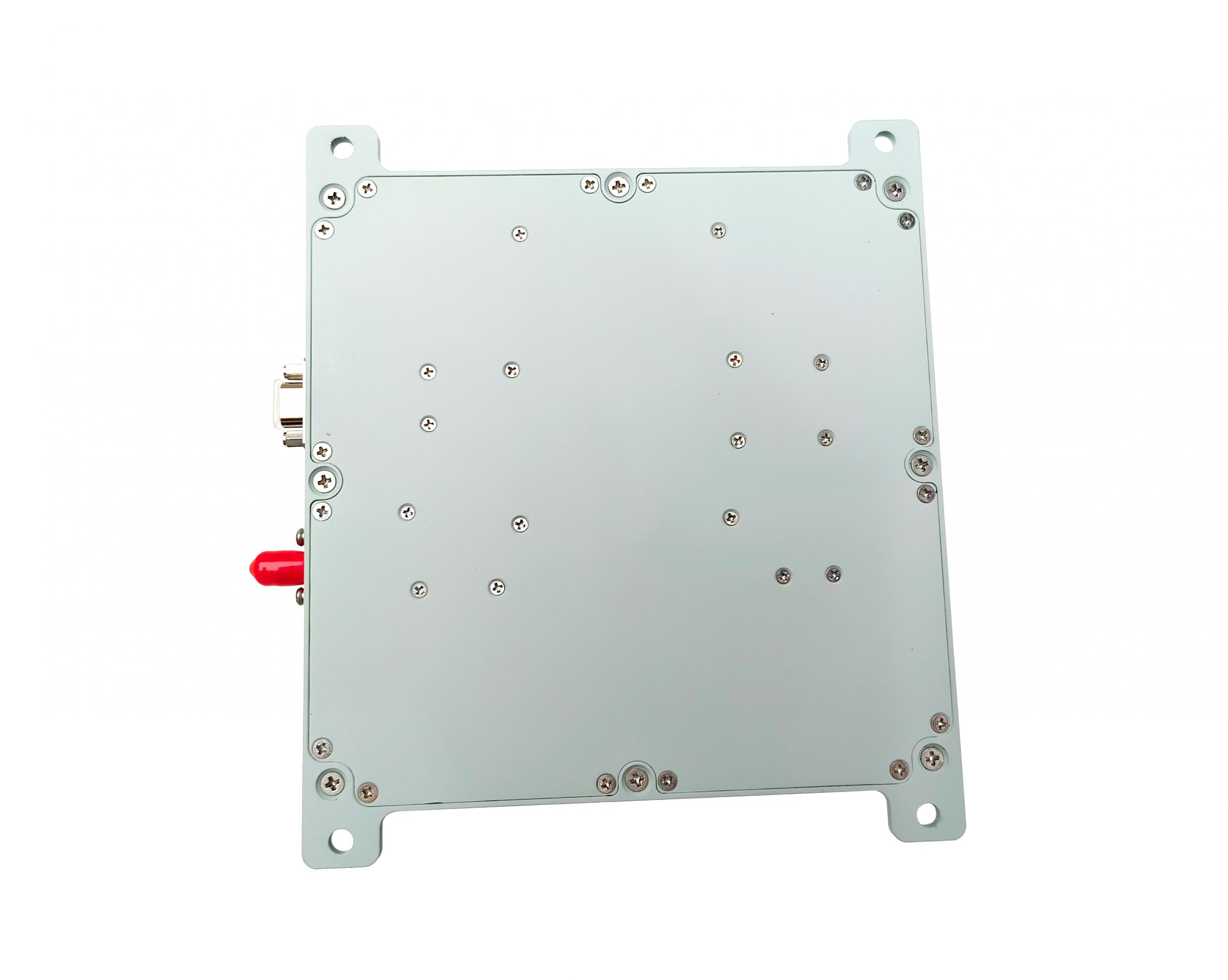

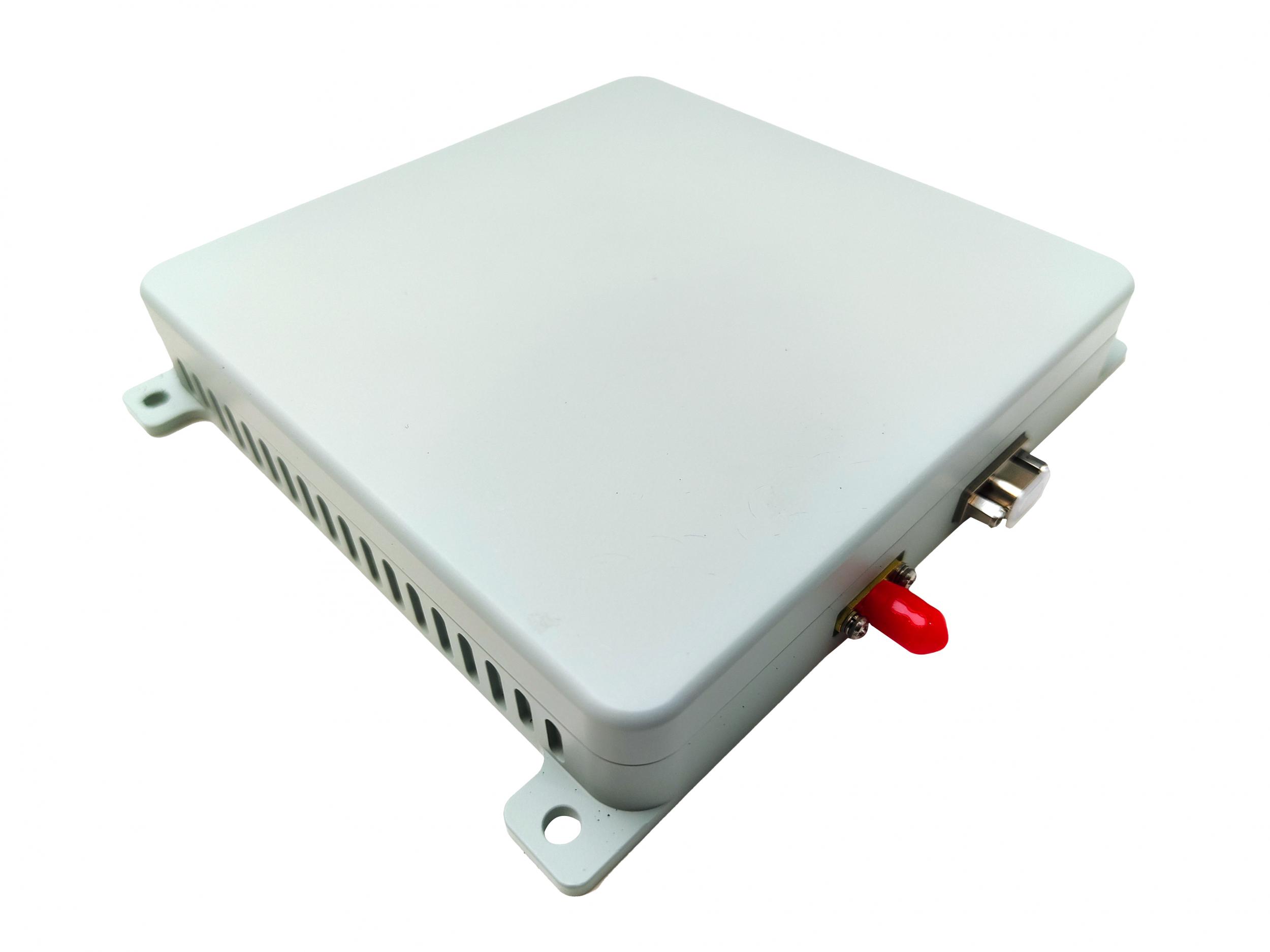

The AJS-007Pro-8CH-G1 is a miniaturized all-in-one GNSS AJ terminal for civilian drones and industrial PNT applications. It supports four-system reception of BDS-B1, GLO-G1, GPS-L1 and GAL-E1, offering wideband anti-jamming performance against up to 3 interference sources. Built-in antenna array and anti-jamming modules defend against signal interference and malicious attacks, ensuring secure and stable high-precision navigation for unmanned devices.
| Anti-interference capability： | |
| Single | ≥ 105dBc |
| Three | ≥ 95dBc |
| Interference Type： | |
| Band-limited Gaussian white noise interference,Spread spectrum matched filter interference | |
| Pulse interference，sweep interference | |
| Mixed interference | |
| Anti-interference airspace\orientation | 0~360°、pitch-90~90° |
| Volume | 150x130x21mm |
| Power consumption | ≤12W(room temperature) |
| Weight | ≤400g |
| RF output description： | |
| Output signal frequency | 1561.098MHz/1575.42MHz/1602MHz |
| RF output power | -70~-60dBm |
| Output impedance | 50 ohms |
